Custom Black Mini Electric Dual Power Automatic Transfer Switch

1. Short-Circuit Protection
The Black Mini Electric ATS incorporates advanced short-circuit protection, safeguarded by a circuit breaker equipped with a protective coil. The breaker's coil mechanism provides precise tripping accuracy, aligning with international safety standards.

Suitable for 220V systems, it offers a practical solution for applications requiring uninterrupted power, such as data centers, medical facilities, and emergency lighting.

2. PCB-Based Control Board
At the core of this ATS lies a high-performance PCB (Printed Circuit Board) that guarantees stable and secure operation. The use of industrial-grade materials reduces signal interference and improves resistance to environmental factors like humidity and temperature fluctuations.

The PCB's modular design simplifies maintenance and allows for efficient troubleshooting. Key functionalities, such as source detection and transfer timing, are managed by embedded microcontrollers, ensuring seamless transitions between power sources without voltage drops.

3. Pure Copper Motor
The ATS features a pure copper motor coil, renowned for its good conductivity and thermal resistance. Copper’s low resistivity minimizes energy loss during operation, improving efficiency and reducing heat generation.

Compared to aluminum-wound motors, the copper coil ensures consistent torque and faster response times during power transfers.

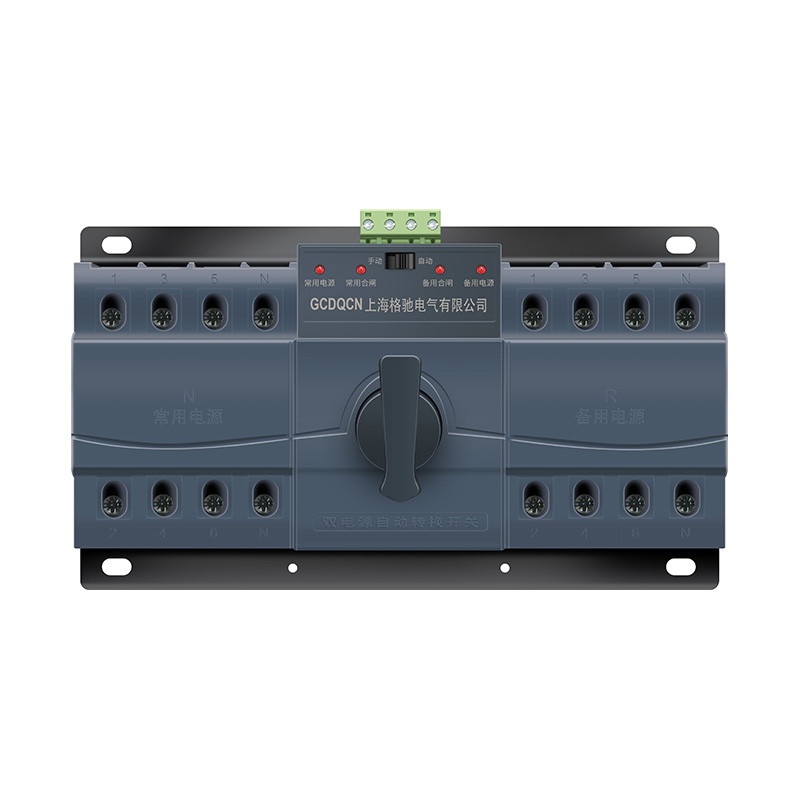

4. Four-Stage Signal Indication System
A user-friendly 4-stage signal indicator provides real-time status updates, including:

Common incoming line power indication
Common closing power indication
Standby closing power indication
Standby incoming power indication

5. Wide Compatibility
The ATS supports 220V AC inputs from diverse sources, including:

Grid (Utility) Power
Generators (Diesel/Gas)
Solar/Wind Energy Systems
Battery Inverters (UPS)

Its universal design makes it adaptable for residential backup systems, off-grid solar installations, and commercial backup power setups. The compact form factor allows for easy integration into existing electrical panels.
