Custom Free-Standing Steel Electrical Enclosure

1. Robust Construction
The enclosure is fabricated from premium cold-rolled steel, known for its exceptional mechanical properties and resistance to deformation. Unlike hot-rolled alternatives, cold-rolled steel undergoes additional processing to improve surface finish and dimensional accuracy.

The panels are precision-cut using CNC laser or plasma cutting technology, ensuring clean edges and exact dimensions. Automated welding techniques reinforce seams, eliminating weak points. The thickened steel (typically 1.5–2.0 mm) adds rigidity, preventing bending or warping under load.

2. Standardized Production
Every enclosure undergoes a standardized manufacturing workflow to guarantee uniformity and compliance. CNC machines govern critical processes, including panel cutting, hole punching, and bracket fabrication.

Pre-programmed toolpaths allow for efficient batch production while accommodating customizations such as atypical mounting holes or cable entry points. The use of CNC also reduces material waste, aligning with sustainable practices.

3. Functional Design
Bottom Ventilation: Strategically placed ventilation slots at the base facilitate passive airflow, dissipating heat generated by enclosed equipment. This design prevents overheating without relying on external fans, reducing energy consumption and maintenance needs. The perforations are sized to balance cooling efficiency with dust/particle ingress protection (IP30–IP54 ratings available).

Reinforced Latch System: The enclosure features a heavy-duty toggle latch with a zinc-plated steel body and integrated spring. This mechanism ensures secure closure under vibration or accidental impact, while remaining tool-free for easy access.

Adjustable Mounting Rails: Internal DIN rails or crossbars can be repositioned vertically via slotted mounting points. This flexibility accommodates varying component sizes (e.g., PLCs, transformers) and simplifies future upgrades.

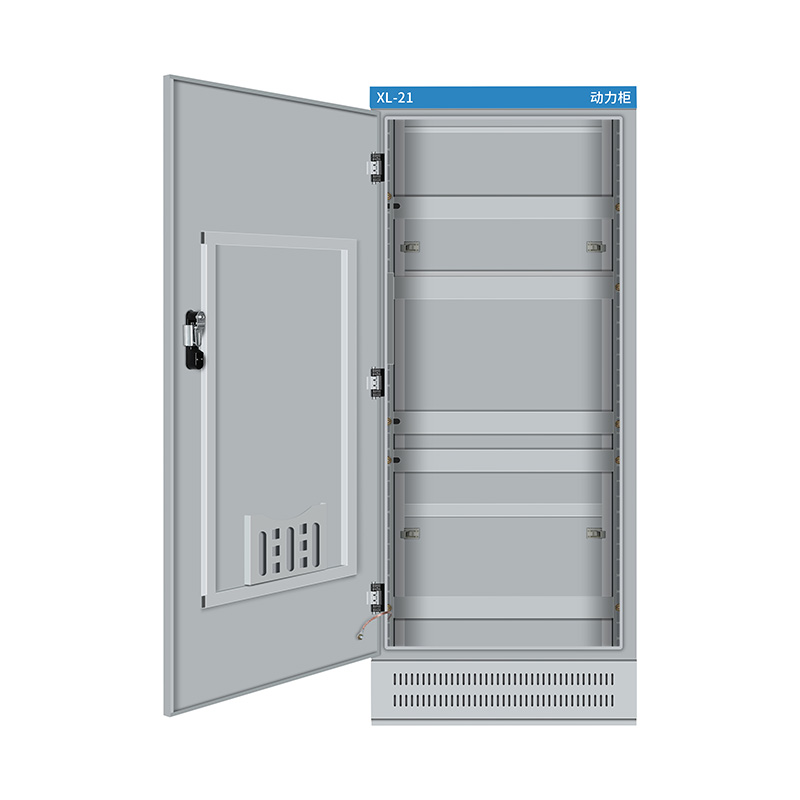

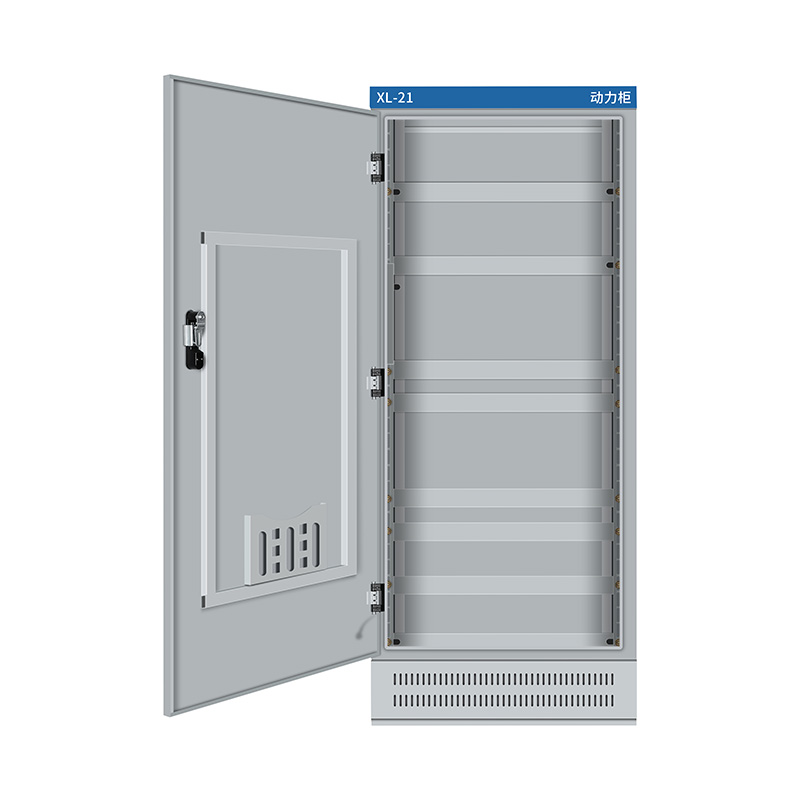

XL-21 STANDARD SIZE

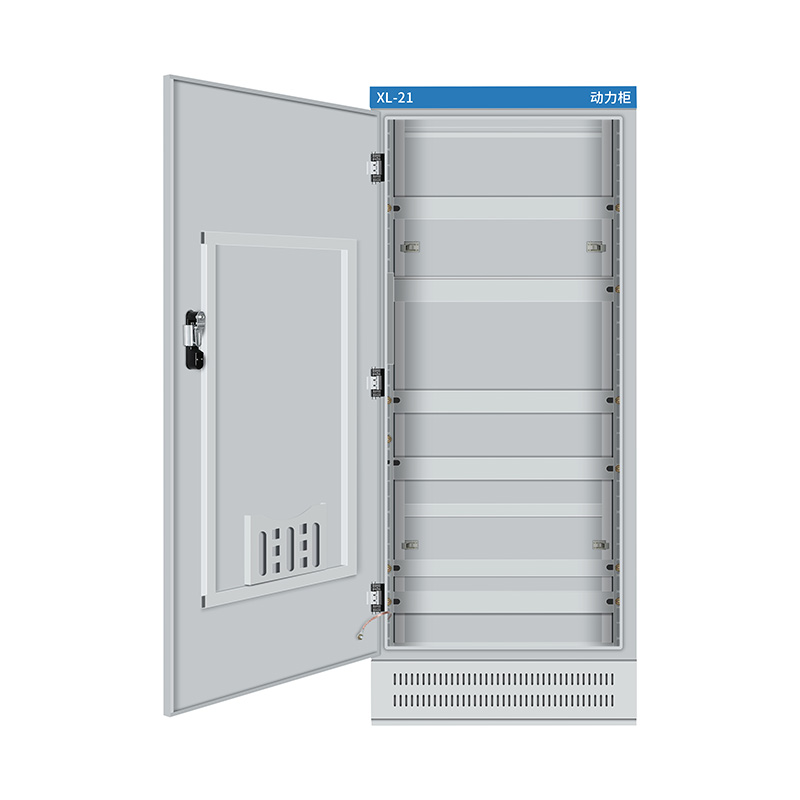

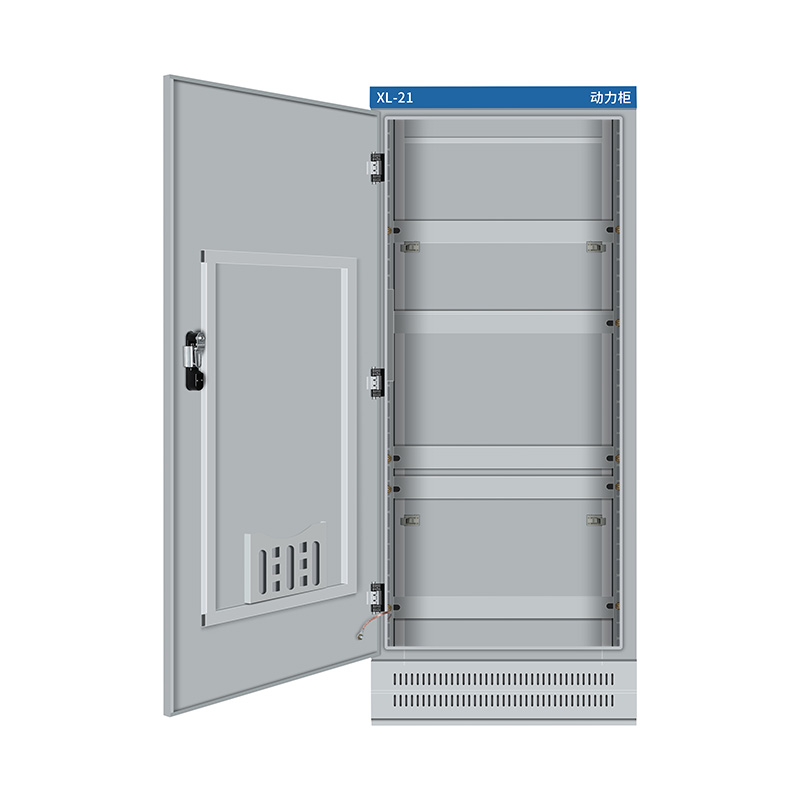

XL-21 THICKENED SIZE
