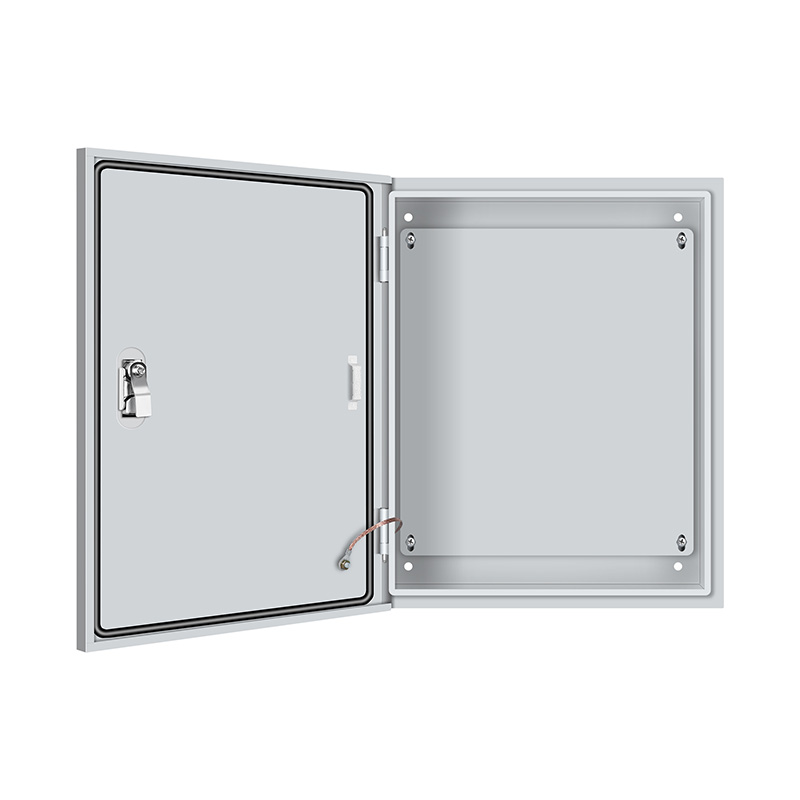

Custom Wall Mounted Metal Electrical Distribution Box

1. Adjustable Mounting Plate
The JXF distribution box is equipped with a movable mounting plate, allowing users to adjust the depth of the enclosure to accommodate different component configurations. The mounting plate’s flexibility enhances compatibility with a wide range of electrical components, including circuit breakers, contactors, and terminal blocks. The robust 2.5mm mounting plate is available in orange or galvanized finishes, providing both durability and clear visual identification for wiring layouts.

2. Convenient Wiring Access and Door Design
To streamline installation and maintenance, the JXF box features lower wiring holes with removable cover plates, enabling easy cable entry and exit. The front and rear doors are designed for quick disassembly and reassembly, reducing downtime during servicing.

3. Modular Cable Entry System
The bottom plate of the JXF series includes three interchangeable cover plates for cable entry points, allowing for flexible cable management. These plates can be freely repositioned or replaced to suit specific wiring requirements, simplifying the process of introducing cables and creating openings.

4. Detachable Base for Easy Assembly (Optional)
An optional detachable base enhances the versatility of the JXF distribution box, enabling swift assembly and disassembly. The base ensures secure mounting while maintaining accessibility for wiring and component adjustments.

5. Durable Surface Treatment
The JXF box undergoes a multi-stage surface treatment process, including degreasing, phosphating, electrophoretic priming, and outdoor-grade waterproof plastic powder coating. This ensures exceptional resistance to corrosion, UV exposure, and moisture, making the enclosure suitable for both indoor and outdoor applications.

6. Customizable Specifications
The JXF series is available in customizable dimensions and configurations to meet specific project requirements. Clients can request tailored solutions for unique applications, ensuring seamless integration into diverse electrical systems.
